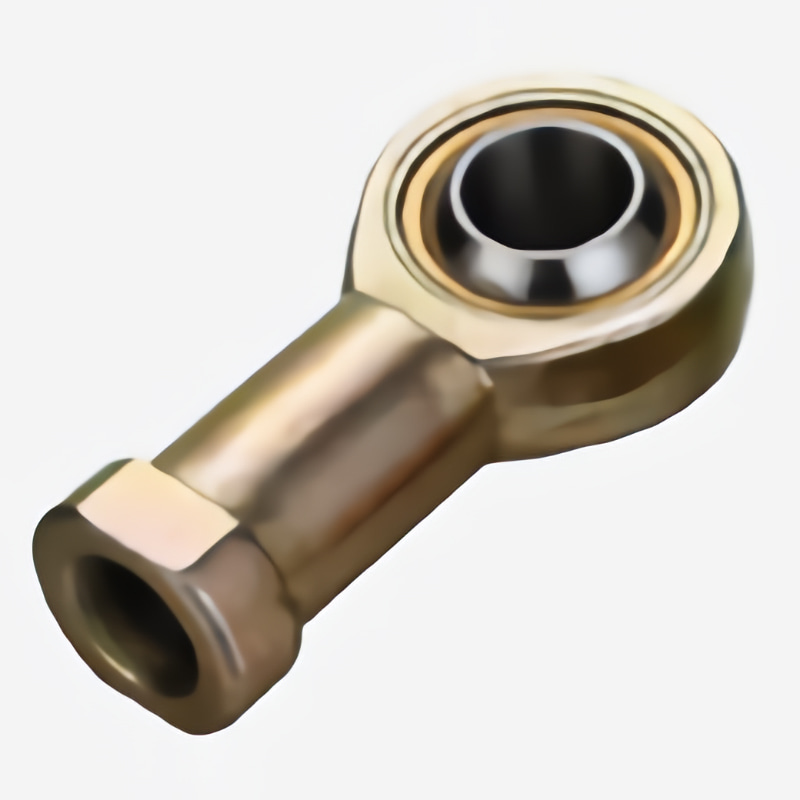

PHSA Series

PHSA Series

[email protected] Nobis loquere
PREV：Virga finem ferens
NEXT：POSA Series
  • Descriptio
  • Additional Information
  • Commentarium

  • PARS NO.

    Dimensiones (mm)

    Load* Ratings (KN)

    Pondus

    (kg)

    d

    d3

    W

    B

    C1

    h1

    d2

    max

    L4

    max

    L5

    max

    d4

    max

    d5

    max

    L3

    min

    a°

    Dynamic

    Static

    PHSA 5

    5

    M5x0.8

    9

    8

    6

    27

    18

    36

    4

    8.5

    11

    9

    13

    3.3

    4.1

    0.016

    PHSA 6

    6

    M6x1

    11

    9

    675

    30

    20

    40

    5

    10

    13

    11

    13

    4.3

    5.3

    0.022

    PHSA 8

    8

    M8x1.25

    14

    12

    9

    36

    24

    48

    5

    12.5

    16

    14

    14

    68

    8.5

    0.047

    PHSA 10

    10

    M10X1.5

    17

    14

    10.5

    43

    28

    57

    6.5

    15

    19

    17

    13

    10

    11

    0.076

    PHSA 12

    12

    M 12x1.75

    19

    16

    12

    50

    32

    66

    6.5

    17.5

    22

    19

    13

    13

    14

    0.108

    PHSA 14

    14

    M14x2

    22

    19

    13.5

    57

    37

    77

    8

    20

    27

    21

    16

    17

    20

    0.16

    PHSA 16

    16

    M16X2

    24

    21

    15

    64

    40

    84

    8

    22

    27

    22

    15

    21

    25

    0.225

    PHSA 18

    18

    M18X1.5

    27

    23

    16.5

    71

    46

    93

    10

    25

    31

    27

    15

    26

    30

    0.32

    PHSA 20

    20

    M20X1.5

    30

    25

    18

    77

    50

    101

    10

    27.5

    34

    30

    14

    31

    35

    042

    PHSA 22

    22

    M22X1.5

    32

    28

    20

    84

    54

    111

    12

    30

    37

    32

    15

    38

    43

    0.54

    PHSA 25

    25

    M24x2

    36

    31

    22

    94

    60

    124

    12

    33.5

    42

    36

    15

    47

    65

    0.75

    PHSA 28

    28

    M27X2

    41

    35

    24

    103

    66

    136

    14

    37

    46

    41

    15

    59

    77

    0.82

    PHSA 30

    30

    M30x2

    46

    37

    25

    110

    70

    145

    15

    40

    50

    41

    17

    63

    86

    1.30
