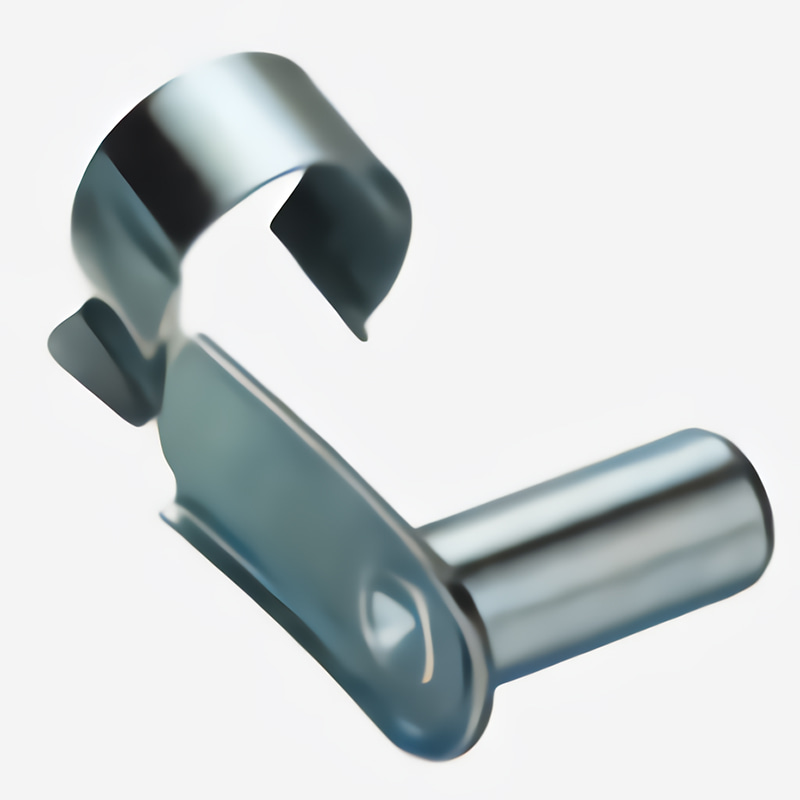

Ver Bolt tenens

CODEX

Apta Clevis

d1

h11

g*

a

b

l1

l2

l3

Pondus

KG/100pieces

CL4x3

G4X8

4

8

9.5

11

19

15

4.5

0.145

CL5x10

G5x10

5

10

12

13.5

23

19

5.5

0.254

CL5x20

G5x20

5

20

12

13.5

33

29

5.5

0.310

CL6x12

G6x12

6

12

14

16

28

23

6.5

0.458

CL6x24

G6x24

6

24

14

16

40

35

6.5

0.516

CL8x16

G8x16

8

16

19

21.5

37

30

8

1.059

CL8x32

G8x32

8

32

19

21.5

52

46

8

1.155

CL10x20

G10x20

10

20

23

26

46

38

10

1.938

CL10x40

G 10x40

10

40

23

26

66

58

10

2.046

CL12x24

G12x24

12

24

28

31

53

45

12

3.306

CL12x48

G 12x48

12

48

23

31

78

69

12

3.500

CL14x28

G14x28

14

28

31

34

62

52

14

4.722

CL14x56

G14x56

14

56

31

34

92

82

14

5.076

CL16x32

G16x32

16

32

36

39

73

62

16

6.940

CL16x64

G16x64

16

64

36

39

103

92

16

7.440

CL20X40

G20x40

20

40

45

50

87.5

71.5

16

13.000
